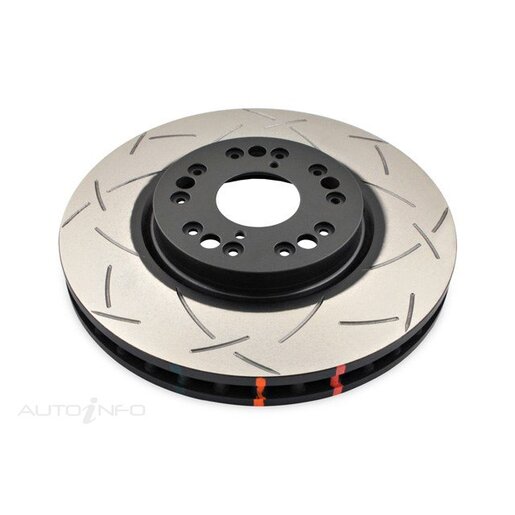

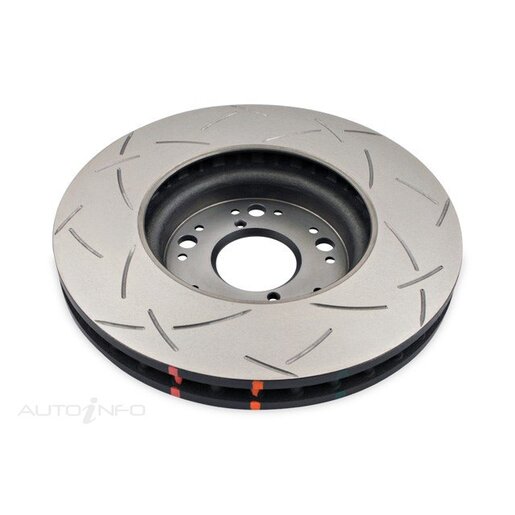

DBA Disc Brake Rotor T3 Slotted - DBA4748S

SKU: 4688400 / PE30982 Part Number: DBA4748S
Brake rotors are circular discs connected to each wheel, responsible for converting kinetic energy into thermal energy and slowing the vehicle down.
$219.00

Buy now, Pay later options

4 payments of $54.75
Check Suitability
Click & Collect
Click & Collect is not available for your location
Please select a location from the suggested list
Delivery (Not Available)
Delivery Not Available
Please select a location from the suggested list

DBA's 4000 Series and 5000 Series rotors can be further enhanced with optional slots known as T3 - 48 CNC machined tri-directional curved slots. Machined slots in the friction surface allow a channel for braking by-products - brake dust and gasses from the incredible heat - to escape. This has a multitude of benefits, from reducing pad contamination, controlling heat build-up, and brake pad knock back. These combine to enhance braking performance and increase service life of the pads and rotors. Compared to more common straight slots, the unique curved slot design reduces the noise associated with 'racing' brakes, and minimises any detriment to pad surface condition.

Diameter (mm)296
Height (mm)51
Thickness (mm)32
Minimum Thickness (mm)30
Centre Hole (mm)62
Stud Holes5
Weight (kg)9.39
Centre Hole62
Stud Holes5
