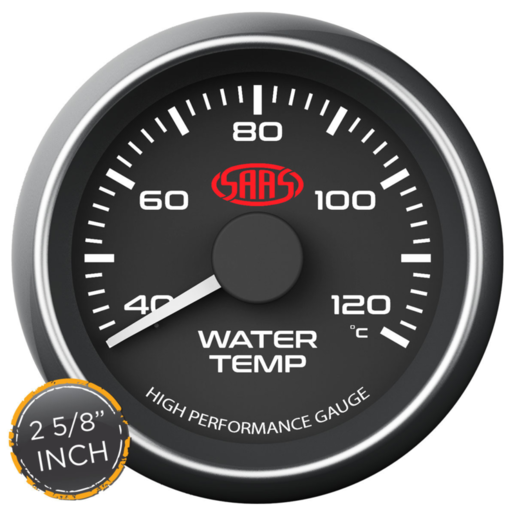

SAAS Water Temp Gauge 40-120 2 5/8 inch Black Muscle Series - SG-WT258B
SAAS Water Temperature Gauge
SG-WT258B Water Temp 40°-120° 2 5/8" 66mm Black Muscle Series
Keep an eye on your vehicle's water temperature and be on the alert for possible overheating or other potential engine issues.
Features:
- 40°-120° Temperature Range
- LED lighting with 4 colour options
- Micro switch for backlight changes
- Replacement spares available (see below)
What's Included :
- Water Temp Gauge
- Water Temperature Sender
- SGA-320051 Brass Adaptor Bush (3/8" NPT - 1/8"NPT)
- Wiring Loom
- Mounting Bracket and fittings
Fitment Notes:
The sender can be mounted directly into an available water temp port (for example, inlet manifold), piggy backed off the OE sender/switch using a brass T-Adaptor or most commonly, into a top radiator hose inline t-piece. Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.
| Series: | Muscle Series I |
| Body OD: | 66mm / 2 5/8inch |
| Range: | 40°-120� |
| Lighting: | LED Multi-select 4 Colour |
| Type: | Electronic |
| Bracket Mounting: | SG31005 |
| Sender Water Temp | SG31001 |
| Sender Thread: | 1/8inch NPT |
| Sender Adaptors: | List Adaptors |
| Wiring Loom: | SG3120 |
| Weight (kg): | 0.4 |
| Cubic (mt): | 0.001781 |
