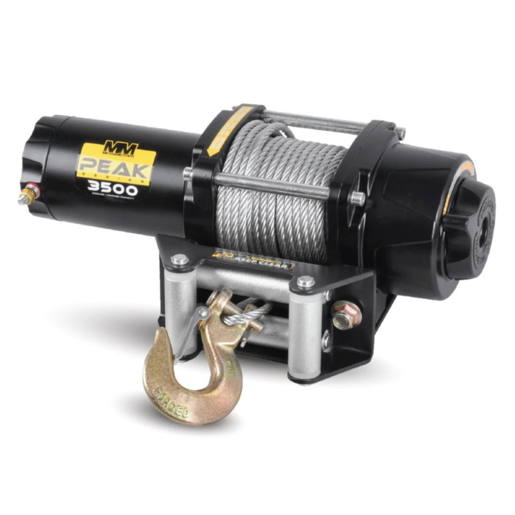

EW3500 WINCH ATV 3500LB
Mean Mother ATV 3500lb winches have been designed to be compact and light weight and are ideal for most ATV/UTV vehicles.
The 2500lb and 3500lb models are supplied with a universal mounting plate for easy installation. Each model has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).
WHY OUR PEAK ATV WINCHES ARE REALLY GOOD

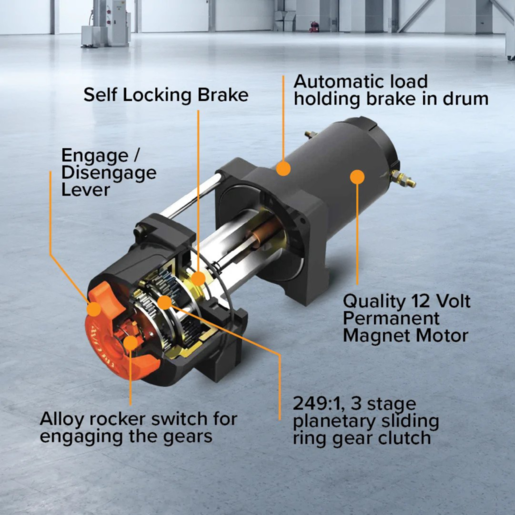

- Forward and reverse operation with Free spool function
- Two Stage Planetary quality components – Sintered Steel Bushes & Hardened Steel Gears
- Waterproof contactor (solenoid) system. Permanently mounts to ATV
- Waterproof quality plug with protective cap
- Mountable handle bar Forward and reverse toggle switch
- Thimble in cable eyelet provides reinforcement and maximum strength
- 5.56mm x 12m (3500lb) 7×19 Construction galvanised aircraft cable
WHAT’S IN THE BOX

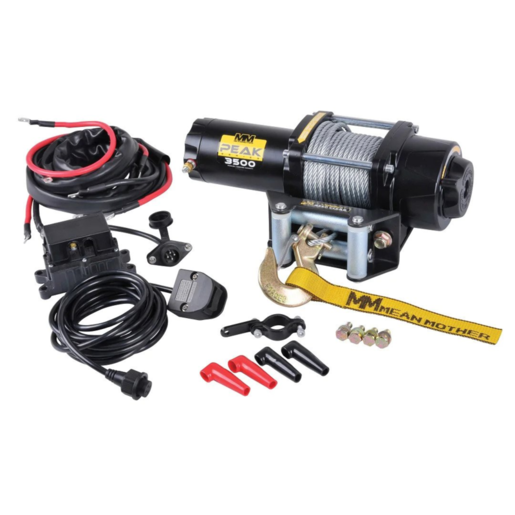

- Winch
- Winch mounting plate
- Solenoid (contactor)
- Handle bar switch with mounting bracket
- Power cable kit
- 5.56mm x 12m (3500lb) 7×19 Construction galvanised aircraft cable.
- Roller Fairlead
- 1/4″ Clevis Hook
- Hand Saver Hook Strap
- Detailed Instruction Manual
- Warranty registration Card
- Winch and Fairlead Mounting Hardware (Bolts, washer and Nuts)
GENERAL INFORMATION
- Specifications – 3500lb (1589kg)
- Voltage – 12 Volt
- Gear Ratio – 242:1
- Gear Tran – 2 Stage Planetary
- Clutch – Turn 90° by handle
- Motor Type – Permanent magnet
- Motor – 3.5 Hp, 2.61 Kw
- Control – Handle bar mountable switch, 2.4m lead
- Braking – Self stocking brake
- Drum Size – 50mm x 80mm(2.5″ x 3.15″)
- Cable – 5.56mm x 12m (3500lb) 7×19 Construction galvanised aircraft cable.
- Clevis Hook – 1/4″
- Overall Dimensions – 344.5mm x 116mm x 114mm (13.5″ x 4.57″ x 4.5″)
- Net Weight – 11.4kg
- Mounting Bolt Pattern – 124mm x 76mm (4.88″ x 3″)
- Battery Power Cables – 2 x 2350mm x 10mm²
- Motor Power Cables – 1 x 600mm x 10mm² & 1 x 450mm x 10mm²
- Recommended Battery – Minimum 650CCA
- Finish – Powder Coating
Performance of 1st Layer
- Line Pull – Line Speed – Motor Amp – Draw Current
- 0 lbs 0 kgs – 18.4 Fpm 5.6 Mpm – 30 – 12 Volt
- 1000 lbs 454 kgs – 15 Fpm 4.6 Mpm – 86 – 12 Volt
- 2000 lbs 907 kgs – 13.1 Fpm 4 Mpm – 136 – 12 Volt
- 3500 lbs 1589kgs – 9.8 Fpm 3 Mpm – 230 – 12 Volt
Line Pull & Cable Capacity by Layer
Cable Layer – Rated Line Pull – Cable Capacity
1 – 3500 lbs 1589 kgs – 9.2 Feet 2.8 Metres
2 – 2900 lbs 1317kgs – 20.3 Feet 6.2 Metres
3 – 2500 lbs 1135 kgs – 33.1 Feet 10.1 Metres
4 – 2200 lbs 1000 kgs – 47.6 Feet 14.5 Metres
5 – 1900 lbs 863 kgs – 50 Feet 15 Metres
