En-Shield technology has been introduced to the Street Series range to provide corrosions resistant rotors, keeping the rotors looking good throughout service life.
The En-Shield process begins with a zinc/aluminium water based coating being applied to the entire rotor surface and is then baked on.
En-Shield rotors are denoted by the suffix (E) in Street Series part numbers.
Features:
- Surface Design Slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.*
- Anti Rust Painted non-friction areas to prevent rust and enhance appearance, or full En-shield coating to protect the rotor and alleviate the need for pre-installation cleaning.*
- BI-Directional Use Symmetrical slotting and/or drilling for universal left/right use.*
- Thermal Efficiency Centre-split core castings for increased heat transfer and thermal efficiency.
- CBN CBN (Cubic Boron Nitride) machine turned finish, minimising disc thickness variation and the potential for pad “knock” and resulting premature wear.
- Kangaroo Paw Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.*
*Some variants may not contain all features.
Part Number: DBA543E
Product SubVariant: | En-Shield |
Axle: | Rear |
Vane Design: | Solid |
Outer diameter[mm]: | 259mm |
Height [mm]: | 44mm |
Brake Disc Thickness [mm]: | 10mm |
Minimum Thickness [mm]: | 8.4mm |
Centering Diameter [mm]: | 64mm |
Number of Holes: | 4 |
Weight [kg]: | 3.61kg |
Pitch Circle �: | 100 |
Unit of Measure (UoM): | Each |
Surface Design: | Plain |

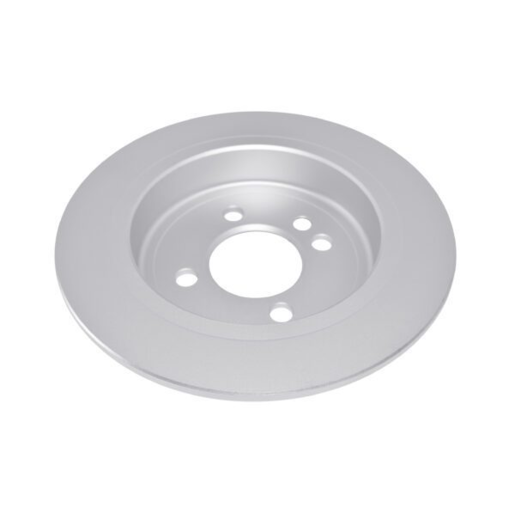

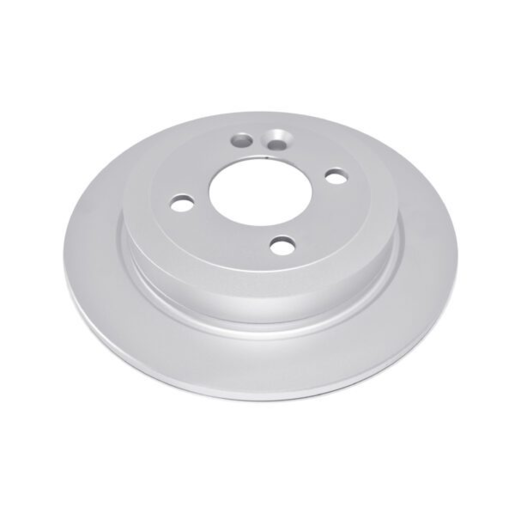

DBA Rear Street Series En-Shield Brake Rotor - DBA543E
$74.99
$99.99
