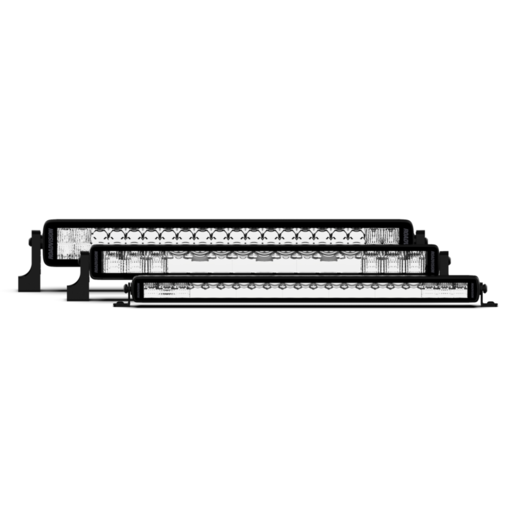

RoadVision 40" LED Bar Light Stealth S40 Series Combo Beam 10-30V - RBL4040SC

SKU: 6562797 / EL33351 Part Number: RBL4040SC
LED Bar Light 40" Stealth S4010-30V 42x3W <188W <11706lm Combo Beam TMT IP67 >Distance
$429.00

Buy now, Pay later options

4 payments of $107.25
Suitable For All
Click & Collect
Click & Collect is not available for your location
Please select a location from the suggested list
Delivery
Delivery Not Available
Please select a location from the suggested list

Roadvision's new Stealth Range of light bars represent the best performance from our new projector style lens in a light weight tough diecast aluminium housing. Available in single and dual row models from 7" to 52", the smoked look lens and blackout mounting provide a low profile durable look producing up to 27,500lm of instant light output utilising Roadvision’s Thermal Management Technology.

The Stealth Series has been designed to deliver three unique performance characteristics with different combinations of distance or intensity suited to your main vehicle use and application:

  1. Long range slimline S40 Series reaches up to 917m @ 1 Lux and produces up to 14970lm.
  2. High intensity S52 Series reaches up to 812m @ 1 Lux and produces up to 19,436lm.
  3. The best of range and intensity from the S70 Series reaching up to 1118m @ 1 lux and producing up to 27,500lm.

Features:

  • Low profile with smoked lens and blackout mounting hardware for a STEALTH on vehicle look
  • Projector Beam Technology producing more power from a smaller package
  • Single row light bar producing up to 27500lm of instant light output
  • Available in 7" to 52" models
  • Osram Hi-Lux LED’s produce super white light close to daylight
  • Multi-volt 10-30V DC input & super low current draw
  • 50,000 hour LED lifespan with solid state technology
  • Advanced Thermal Management Technology
  • Light weight and tough die-cast aluminium housing & polycarbonate lens
  • Water & dust proof IP67 rated
  • 9 position adjustable anti-vibration end mount system & low profile slide mounts
  • Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

S40 Series – Range Specifications:

The S40 Series are a super compact single row light bar designed with a long range beam penetration and lower short range intensity – perfect for highway driving. Suitable for use on trucks, 4×4's and SUV's in licence plate and roof rack mounts, and applications where a larger light profile bar just won’t fit. The S40 delivers outstanding lux performance from a very small package reaching up to 916m @ 1 lux from a 50" bar.

Part Number: RBL4040SC

DescriptionS40 Series 40" LED Light Bar
Beam TypeProjector Combo 6 Driving / 36 Spot
Maximum Lumens11706lm
Beam Distance1668m
Maximum Watts188W
Light Source42x3 Watt Osram LED's
Current Draw Amps11.717.2A @ 13.8V
Voltage Input10-30V DC
Dimensions AxBxC1005x55x40mm
Bar Length40" (1005mm)
Wiring2 Pin ATP Plug
Maximum Lux @ 10m6957 Lux
Meters @ 1 Lux834m
Meters @ 0.5 Lux1668m
