Product Details
Is the power from your marine audio system not quite matching the power of your boat? The Pioneer GM-ME500X1 can easily and cost effectively solve your problems. Designed to support the Pioneer range of subwoofers they also feature a conformal coating on the PCB to improve durability.
Features:
- Speaker Line Input Sensor: Connect your existing OEM unit without the hassle of add-on adaptors
- Variable LPF: Adjust your low-pass filter frequency for greater audio system flexibility
- Multi-Block Terminal: Smoothly connect up to 4 subs for high-power audio output
- D-Class: Enjoy first class sound and powerful volume on a versatile system at half the size of other units
The Pioneer GM-ME500X1 is your perfect power partner!
*This model is not waterproof or water resistant. Do not install this product in a location exposed to direct sunlight, contact with liquid/liquids, or excessive heat, humidity or dust.
Conformal Coated PCB:
- Conformal coating PCB to improve durability making the GM-ME500X1 ideal for marine use*.
- *Do not install the unit in areas that are exposed to direct sunlight, excessive heat or humidity. Also avoid places with dust or areas with a high level of water splashing.
Part number: GMME500X1
Specifications
| RCA Inputs | MONO |
| Amplifier Class | CLASS-D |
| Speaker Level Input | Yes |
| Fuse Rating | 40A x 2 |
| Terminal Type | Block |
| Load Impedance Allowance(Ohms) | 1 to 8 |
| Protection Control System | Yes |
| Dimensions | 252mm(W) x 60mm(H) x 215mm(D) |
| Continuous Power | (1 x 300W RMS (4 Ohm) |
| 1 x 500W RMS (2 Ohm) | |
| 1 x 800W RMS (1 Ohm) | |
| Frequency Response | 10Hz to 240Hz |
| Total Harmonic Distortion(THD) | <0.5%(100Hz) |
| Signal-to-Noise(SN)Ratio | >100dB |
| CrossoverType | Variable LPF |
| Low-Pass Crossover Frequency | 40Hzto240Hz |
| Low-Pass Slope(dB/octave) | -12dB/oct. |
| High-Pass Crossover Frequency | N/A |
| Rubber Covers Included | Side Panel Cover |
| RCA Terminal Cover | |
| FUSE Cover |
Reviews

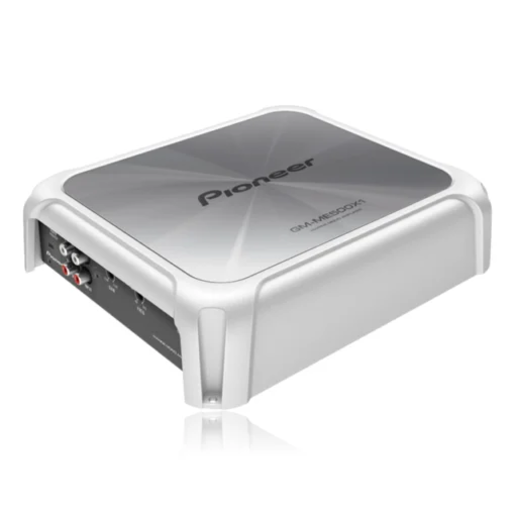

Pioneer Class D Mono Marine Amplifier - GMME500X1
