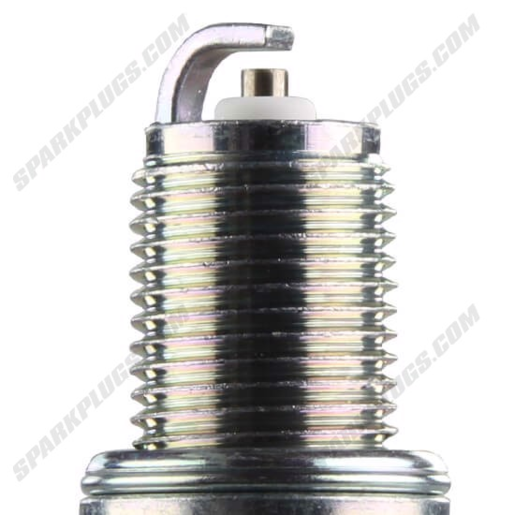

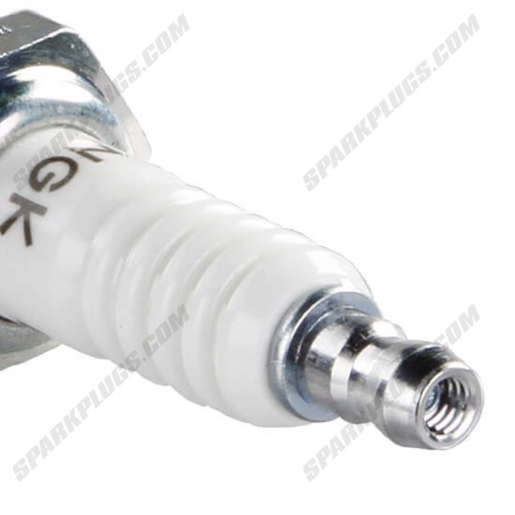

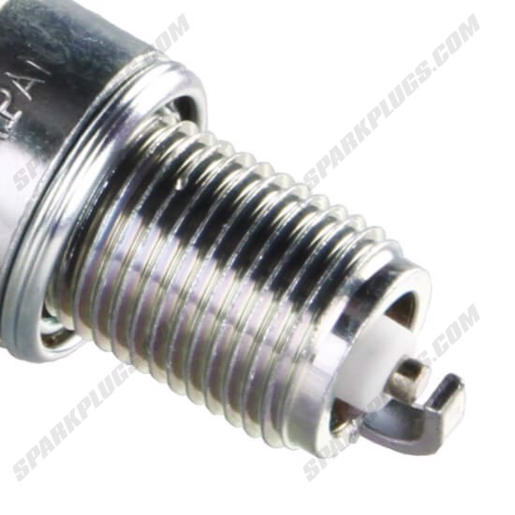

NGK Standard Spark Plug 7732 - BP5ES-11
The NGK Standard Spark Plug BP5ES-11 is designed for dependable ignition and engine performance. It features a nickel-chrome alloy electrode that enhances durability and provides reliable spark generation. The spark plug is equipped with trivalent metal plating to offer superior anti-corrosion and anti-seizing properties, ensuring long-lasting performance. Its pure alumina silicate ceramic insulator delivers exceptional strength and effective heat transfer, while the copper core facilitates efficient heat removal. The BP5ES-11 also includes triple seals to prevent leakage, maintaining consistent ignition quality and engine efficiency. Pre-gapped for convenience, this spark plug is manufactured to meet OEM standards, making it a dependable choice for maintaining optimal engine operation.
Part number: BP5ES-11
| Shell | |
| Thread Diameter: | 14mm |
| Thread Pitch: | 1.25mm |
| Seat Type: | Gasket |
| Reach: | 19mm |
| Hex Size: | 13/16 |
| Terminal Type: | Solid |
| Overall Height: | JIS |
| Gap: | .043 |
| Center Electrode | |
| Material: | Nickel |
| Type: | Standard |
| Size: | 2.5mm |
| Projection: | Projected |
| Ground Electrode | |
| Material: | Nickel |
| Type: | Standard |
| Quantity: | 1 |
| Specifications | |
| Resistor: | No |
| Resistor Value: | 1K Ohm |
| Heat Range: | 5 |
| Torque Specs: | Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft. |
